L-5 POWER

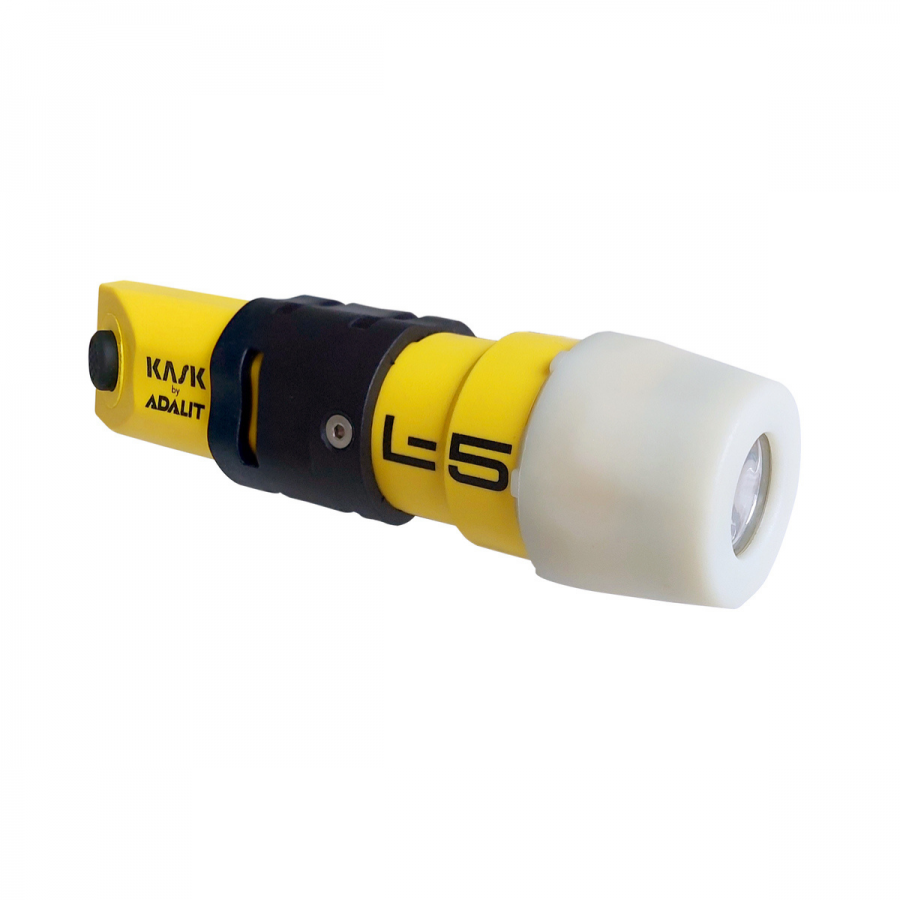

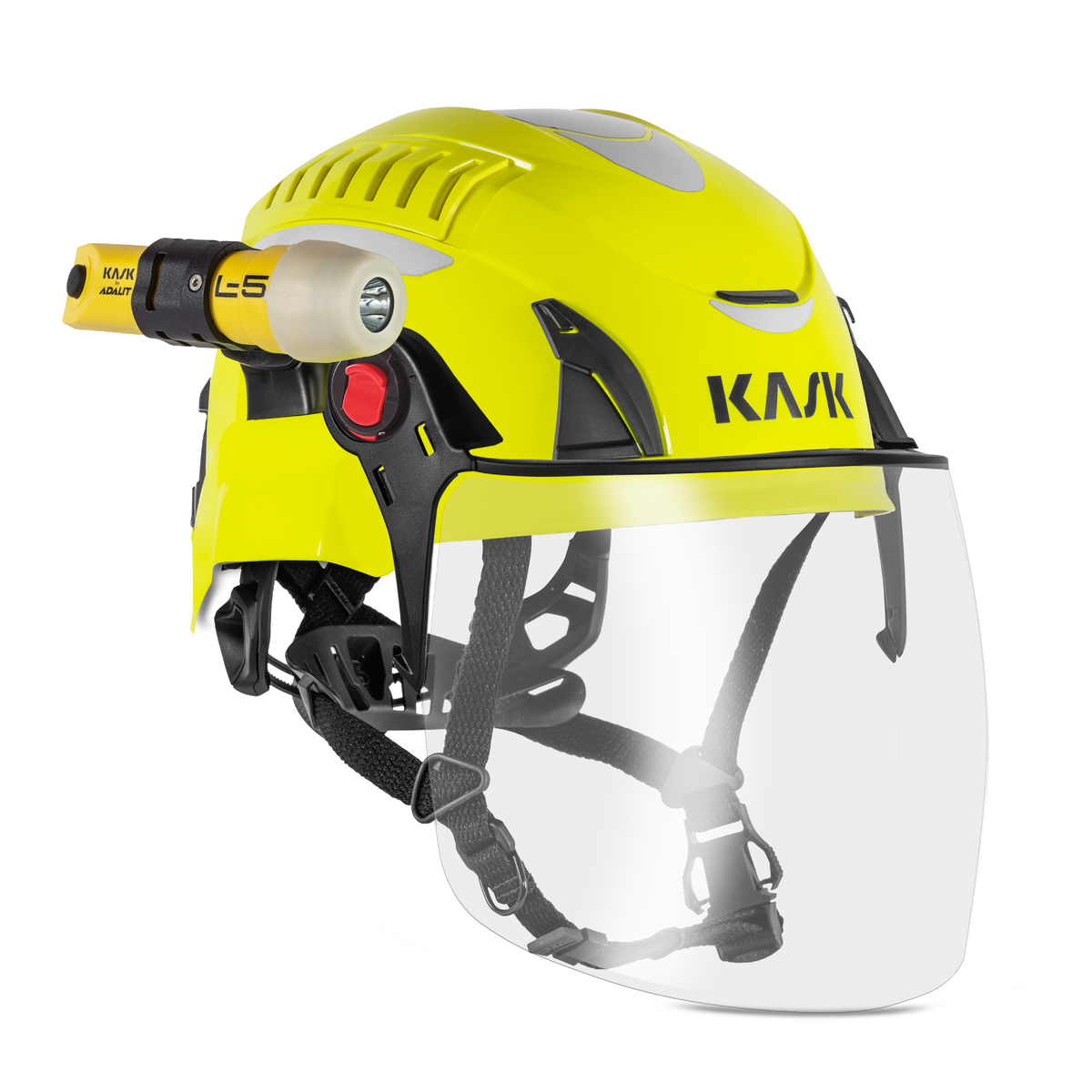

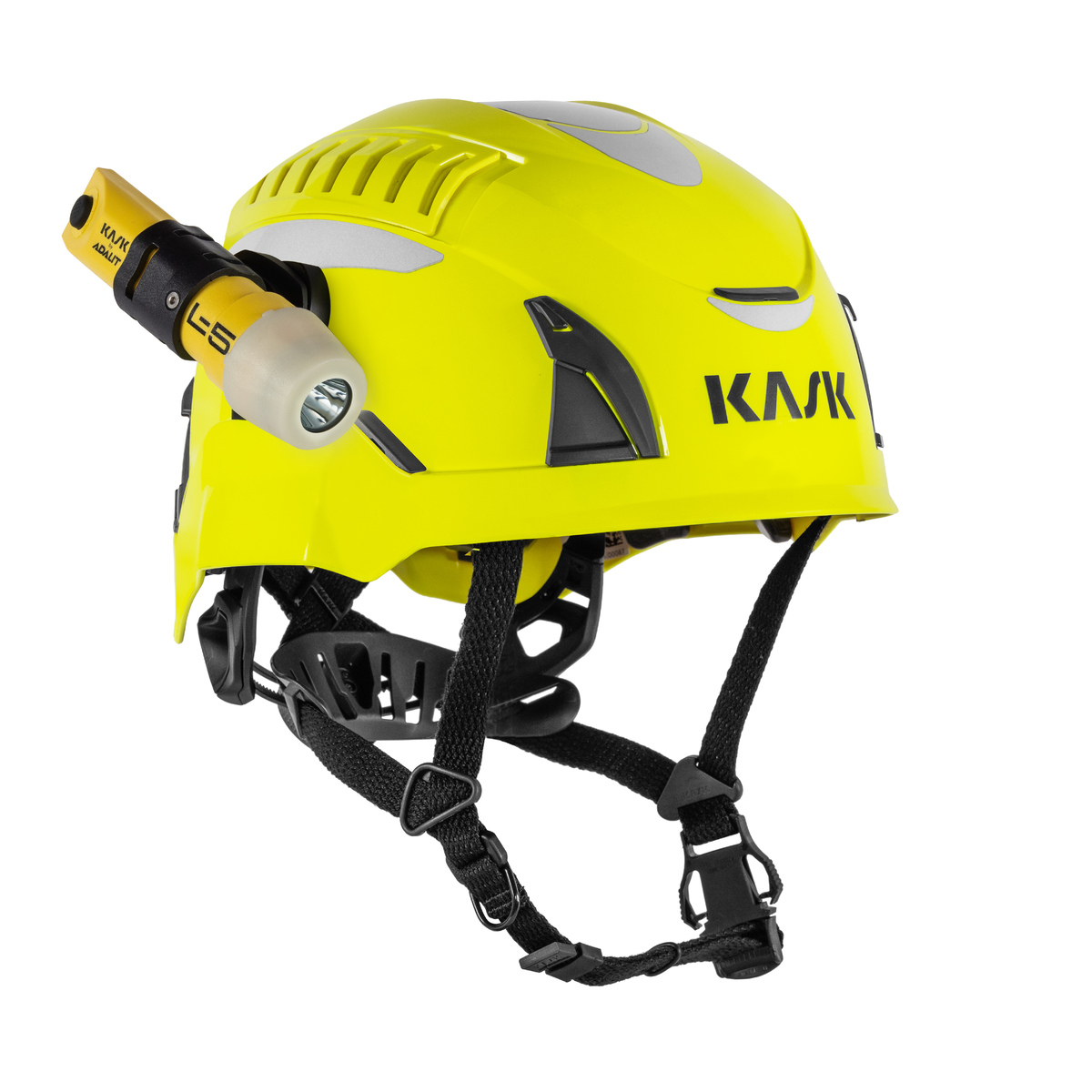

Side-mounted helmet torch with ATEX Zone 0/20 certification for wildland

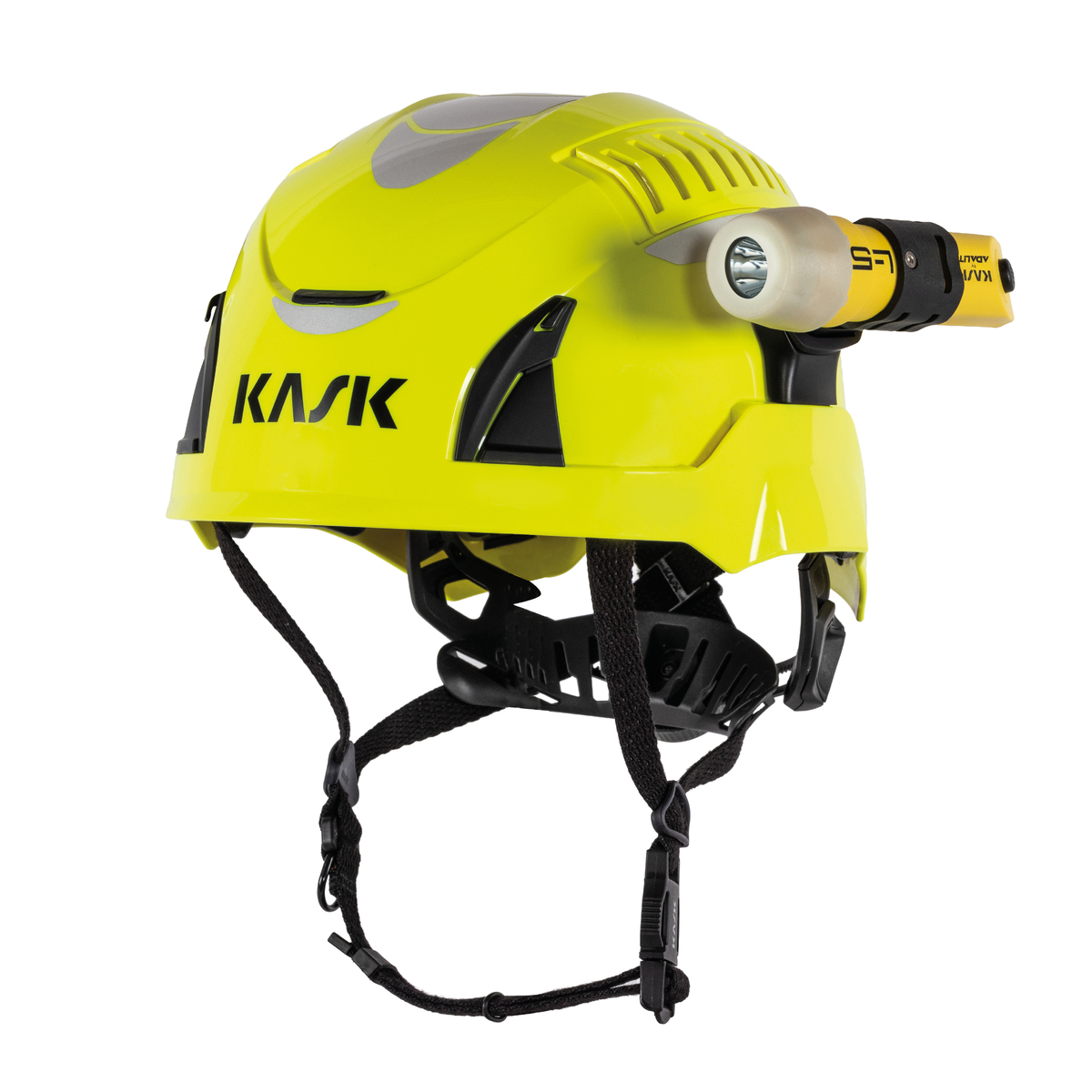

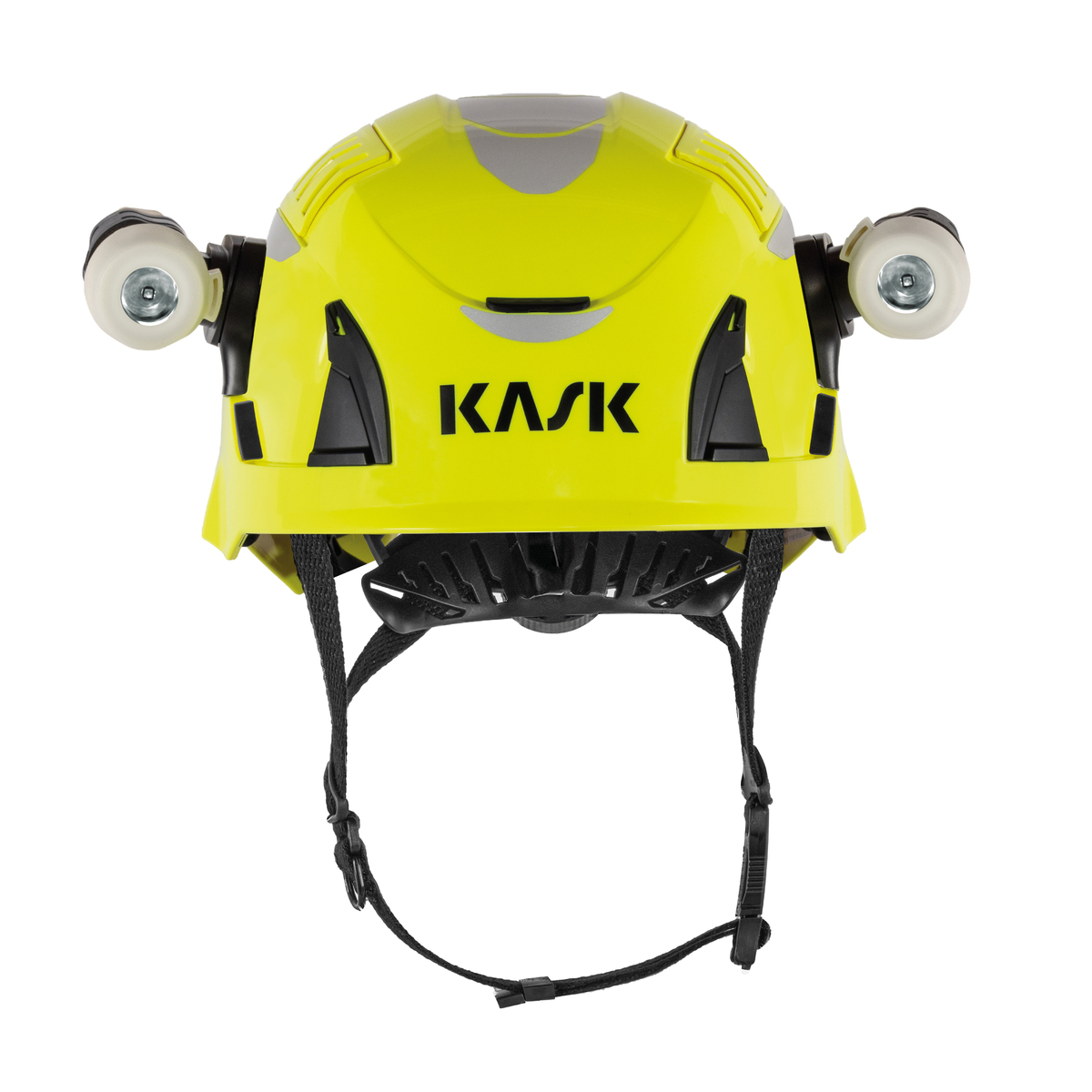

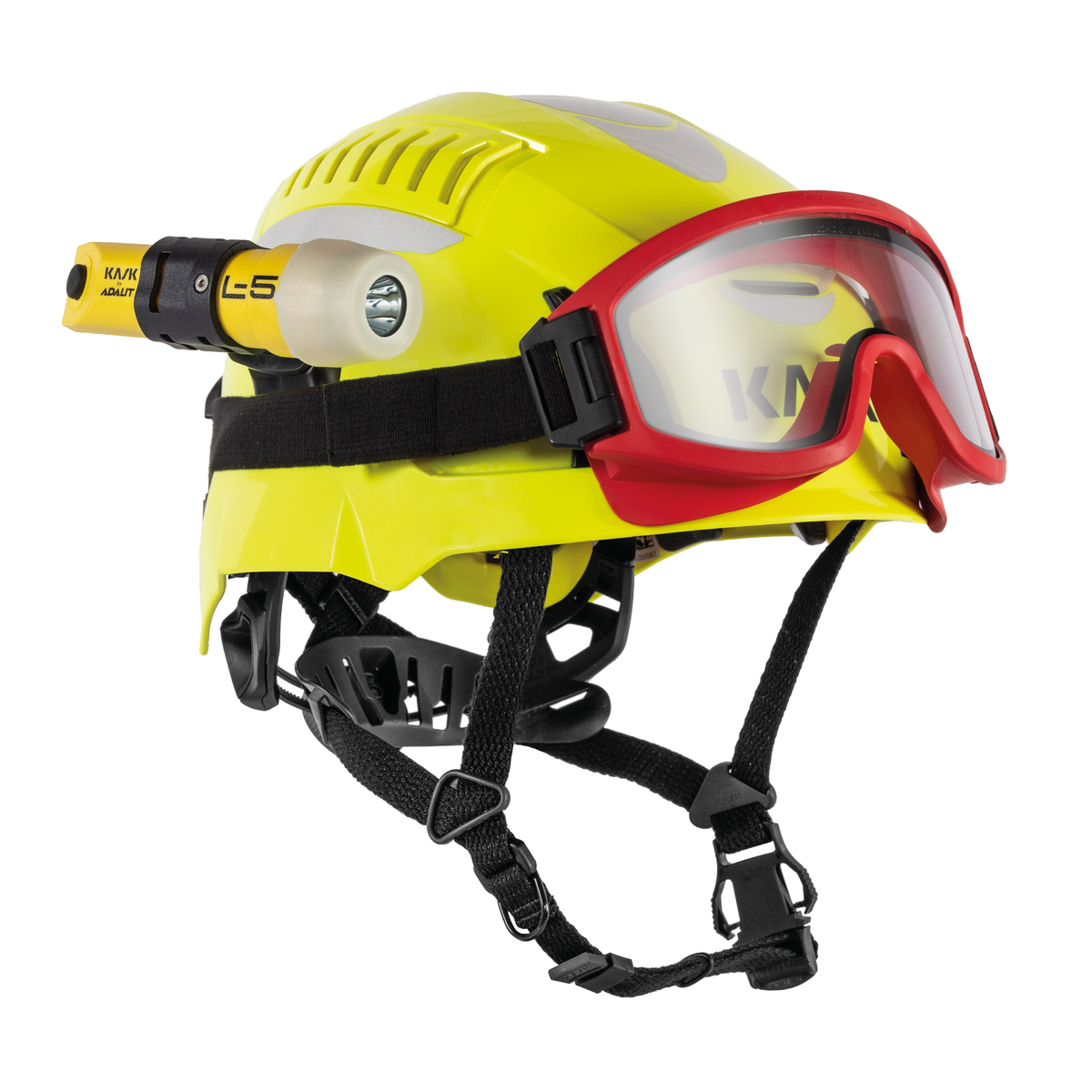

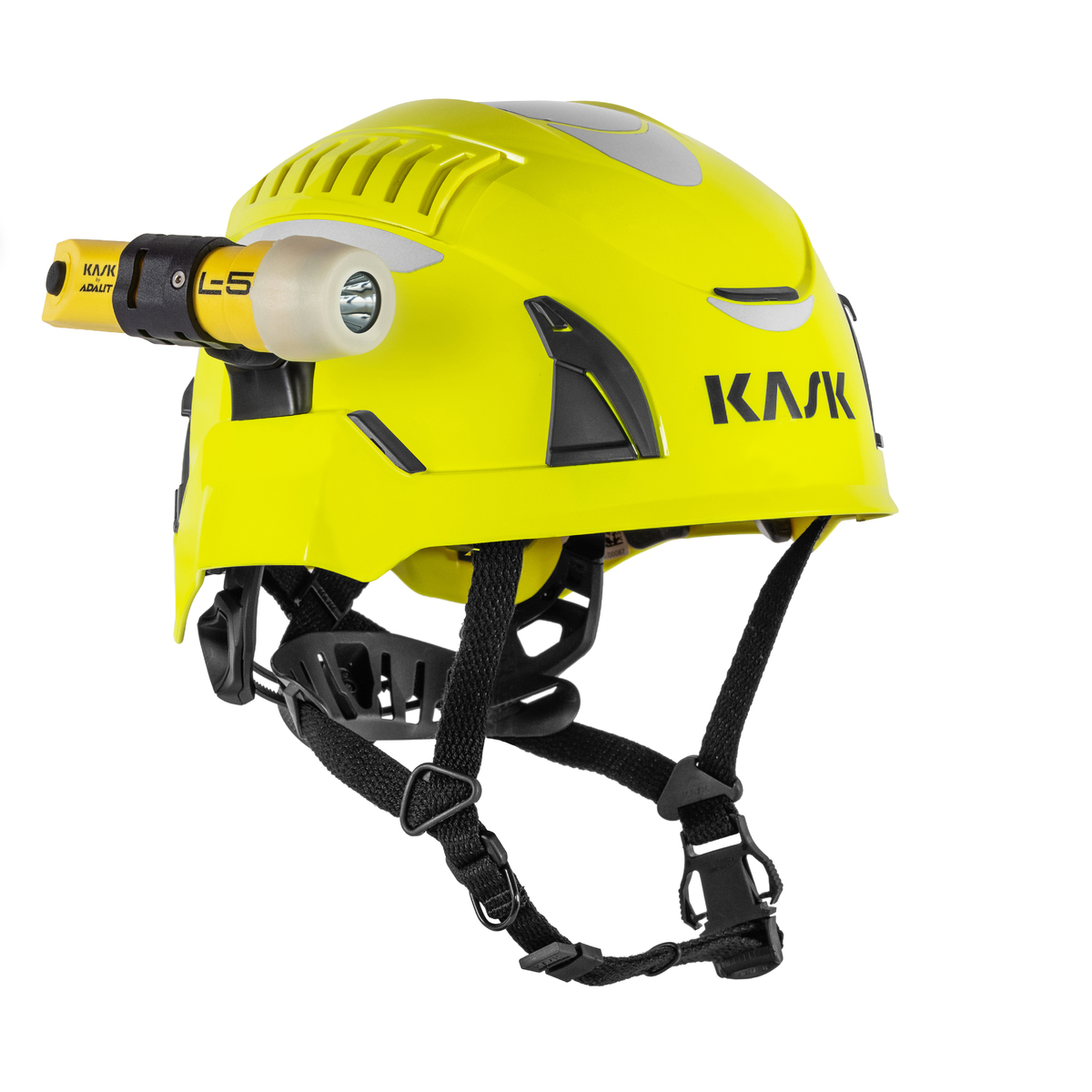

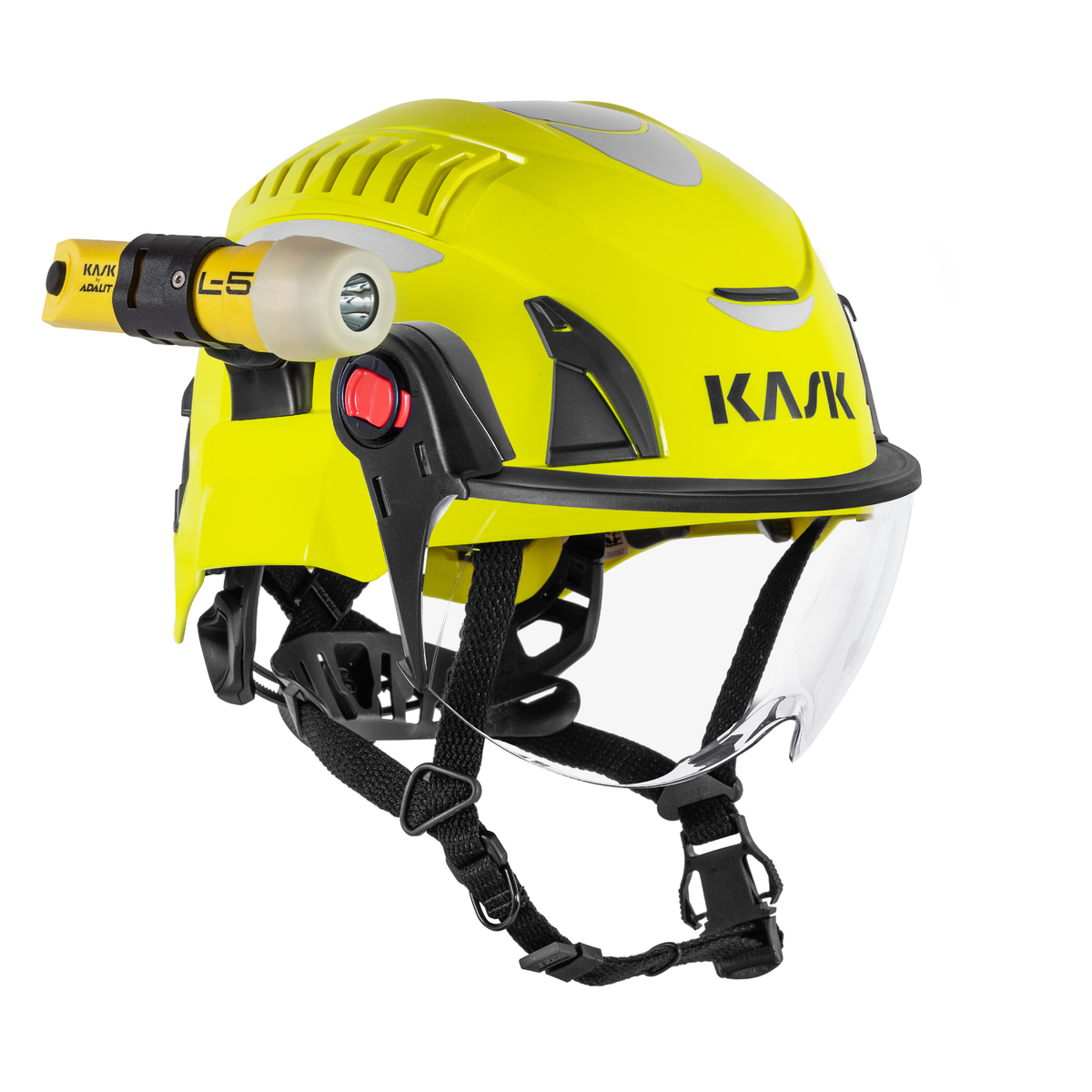

firefighting and technical rescue. Mounts to both sides of KASK Quantum Series helmets with a 360° Helmet Mount for full rotational adjustment.
technical description
product code
WLA00004
Designed to work with KASK Quantum series
ATEX
LOM12ATEX2004II 1 G Ex ia op is IIC T4 Ga
II 1 D Ex ia op is IIIC T85º C Da
weight
145 g (including batteries) | + 360° helmet mount 167 gruntime (max – min)
4 h (max power) – up to 30 hIP class
IP67charging time
light output (max – min, energy saving)
180 lm | 2800 cd BEAM DISTANCE
106 mbattery
4 x alkaline AAA/R03light functions
Max Power + Rear Red LED, Max Powerfunctions
Runtime blinking light, Red LEDincludes
360° Helmet mount | 4 x AAA batteries (to be installed) | Hand Grip CordSIZE
Universal size
technologies

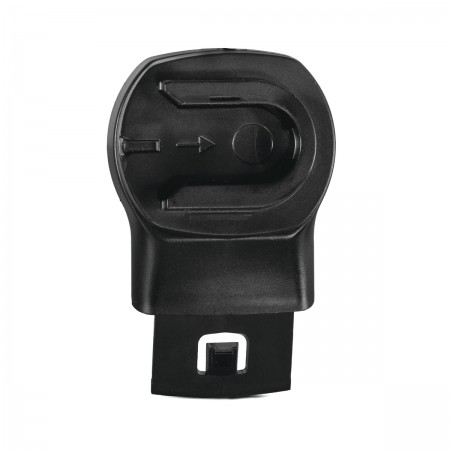

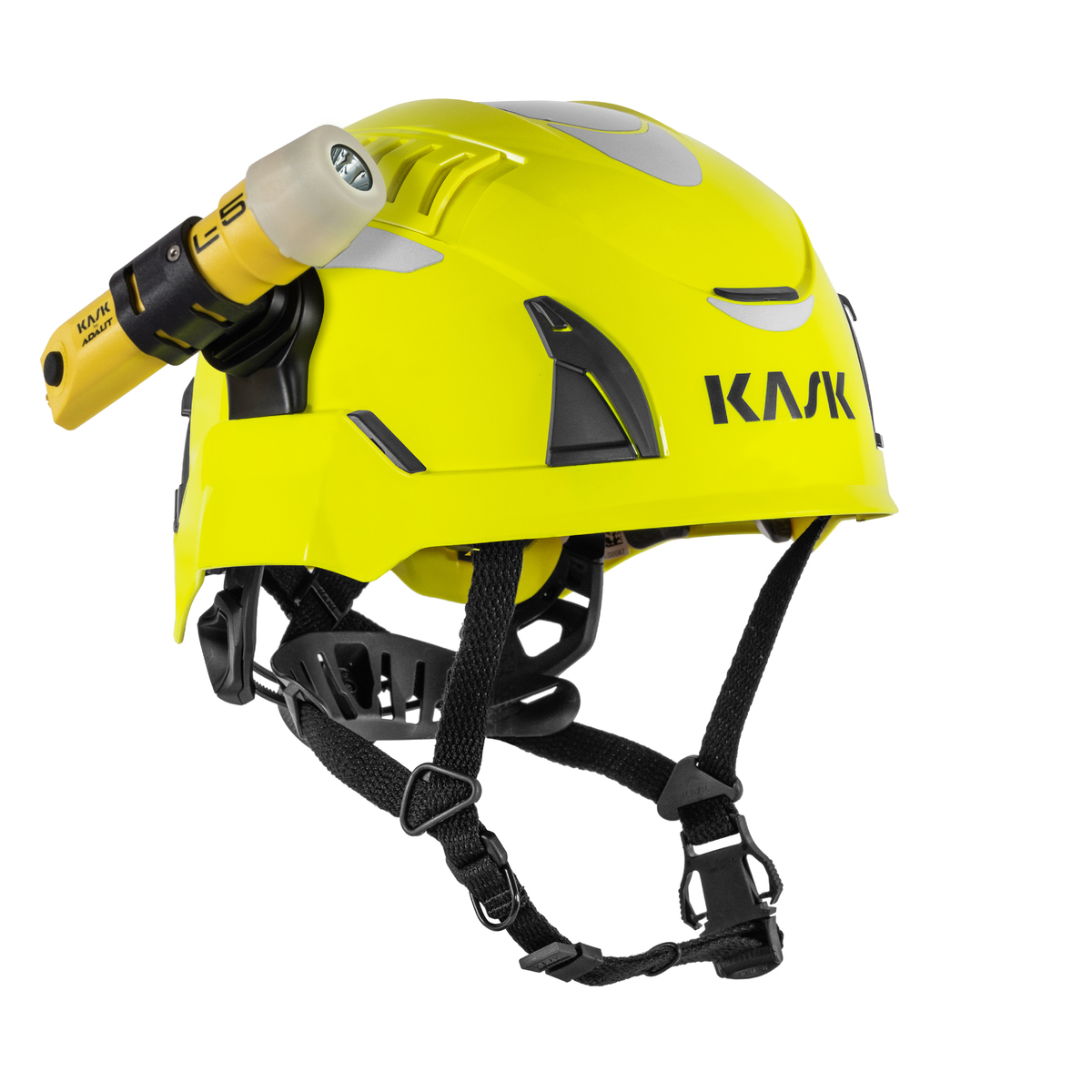

360° HELMET MOUNT Mounts the L-5 Power torch into the 30 mm Euro Slots of KASK helmets onto either side. The system allows full rotational adjustment for precise beam positioning.
ANTISTATIC Helps prevent static electricity buildup on the torch. By dissipating electrostatic charge, it reduces the potential for sparks in explosive gas or dust environments.
ATEX ATEX Zone 0/20 certified for use in explosive gas and dust atmospheres. Approved for operation in environments where flammable substances may be present for long periods or continuously.
BATTERY LEVEL INDICATOR When turned on, the light flashes up to four times to show remaining
battery level. Each flash equals approximately 1 hour of available runtime, giving a quick, clear check of charging status.
FLAME RETARDANT MATERIALS Constructed from high-resistant thermoplastic resin with high mechanical strength and flame-retardant properties. Designed to maintain performance in high-temperature and hazardous conditions.
ON/OFF BUTTON Soft-touch power button positioned for easy access while mounted on the helmet. Designed for reliable activation when wearing gloves.
PHOTOLUMINISCENT BEZEL Glow-in-the-dark bezel enhances visibility in darkness, making it easier to locate if dropped.
RED LED Rear red LED improves wearer visibility in low-light environments, flashing every 5 seconds, making the user easier to identify during operations. Positioned at the tail for clear rear-facing visibility.
